T7

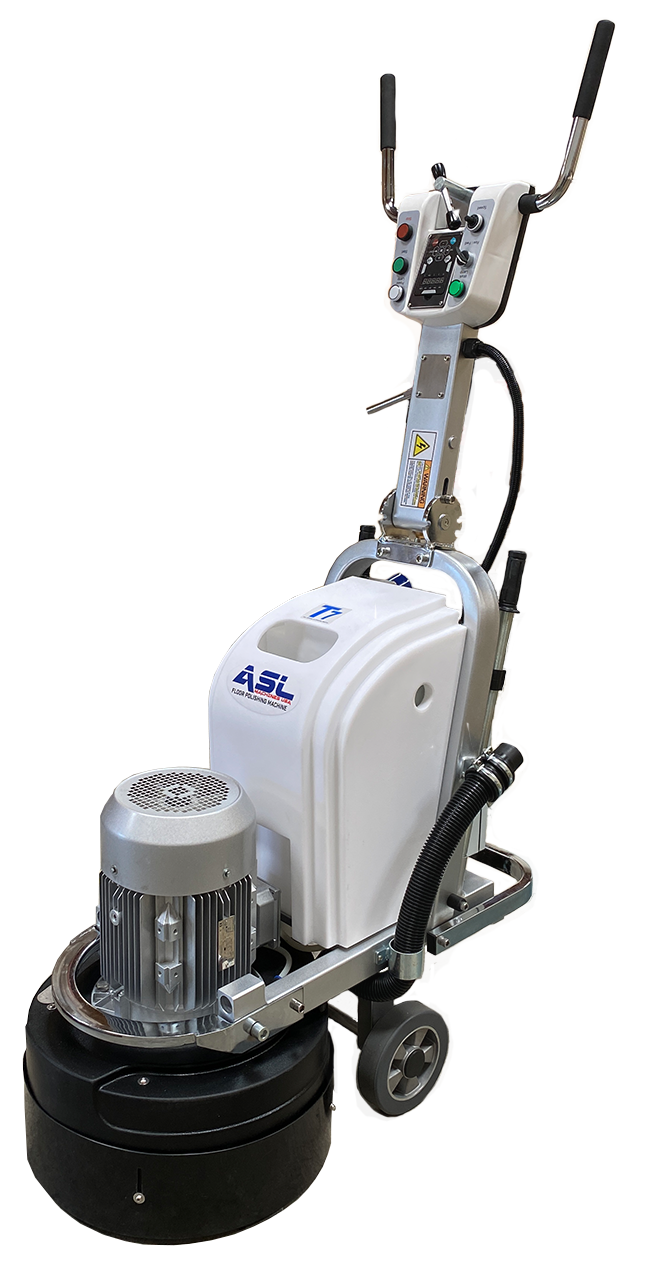

21" Electric Grinder

The ASL T7 is a 21-inch floor grinding machine that offers a powerful grinding and polishing experience. All three models have an aluminum alloy gearbox and is planetary gear driven making it capable of reaching a remarkably flat grind to produce smooth surfaces. Because the machine is gear driven, there is no need for belt changes.

The machine features a folding handle and split body design for a more convenient way to carry and transport. The automatic leveling system has excellent flexibility to evenly grind the floor and perfectly balance the machine.

The magnetic plates make tool changing quick and simple. Strong magnetics keep the tools in place while grinding and polishing, but are easy enough to remove.

t7

  • Model
  • Voltage
  • Current
  • Motor
  • Inverter
  • Disc Speed
  • Frequency
  • Grinding Width
  • Disc Diameter
  • Weight
  • T7-A
  • 380-440V | 3PH
  • 13A
  • 5 HP
  • 5 HP
  • 300-1600 RPM
  • 50/60 Hz
  • 21 Inch (550MM)
  • 9 Inch x 3 (230MM x 3)
  • 320 lbs (145 kg)
  • Model
  • Voltage
  • Current
  • Motor
  • Inverter
  • Disc Speed
  • Frequency
  • Grinding Width
  • Disc Diameter
  • Weight
  • T7-B
  • 208-240V | 1 or 3PH
  • 17A
  • 7.5 HP
  • 10 HP
  • 300-1200 RPM
  • 50/60 Hz
  • 21 Inch (550MM)
  • 9 Inch x 3 (230MM x 3)
  • 342 lbs (155 kg)
  • Model
  • Voltage
  • Current
  • Motor
  • Inverter
  • Disc Speed
  • Frequency
  • Grinding Width
  • Disc Diameter
  • Weight
  • T7-C
  • 380-440V | 3PH
  • 13A
  • 7.5 HP
  • 10 HP
  • 300-1200 RPM
  • 50/60 Hz
  • 21 Inch (550MM)
  • 9 Inch x 3 (230MM x 3)
  • 342 lbs (155 kg)

Brochure

Check out our catalog!

Downloads

Download Manual (PDF)

Download

Videos

For your convenience, here are some videos including information about the machine as well as maintenance.

Feel free to contact us for any questions or inquiries regarding the maintenance of our machines.

Oil Seal Replacement

Cuppler replacement

Dust Shroud Replacement
