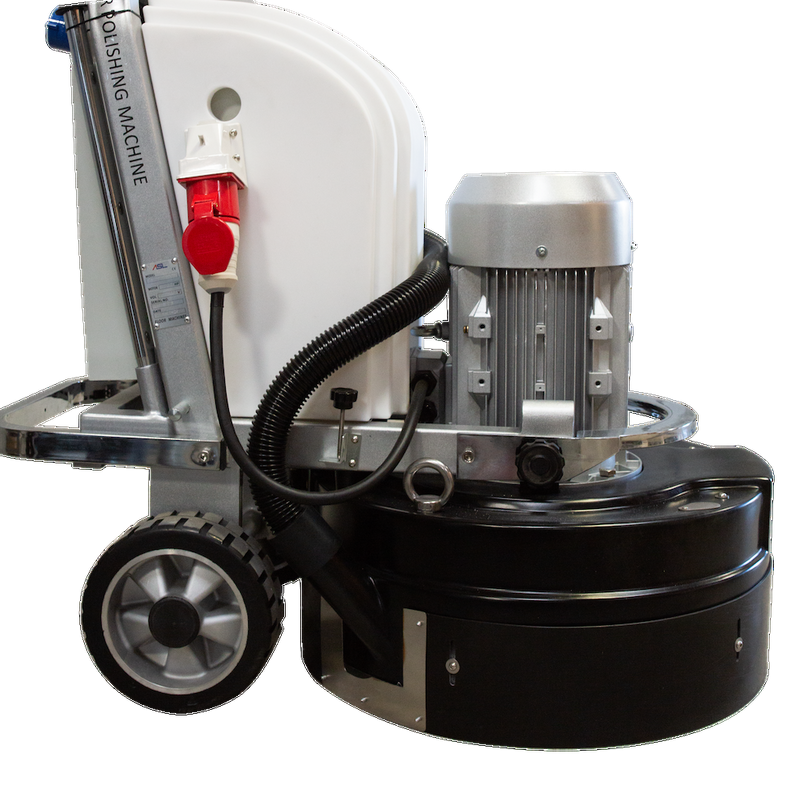

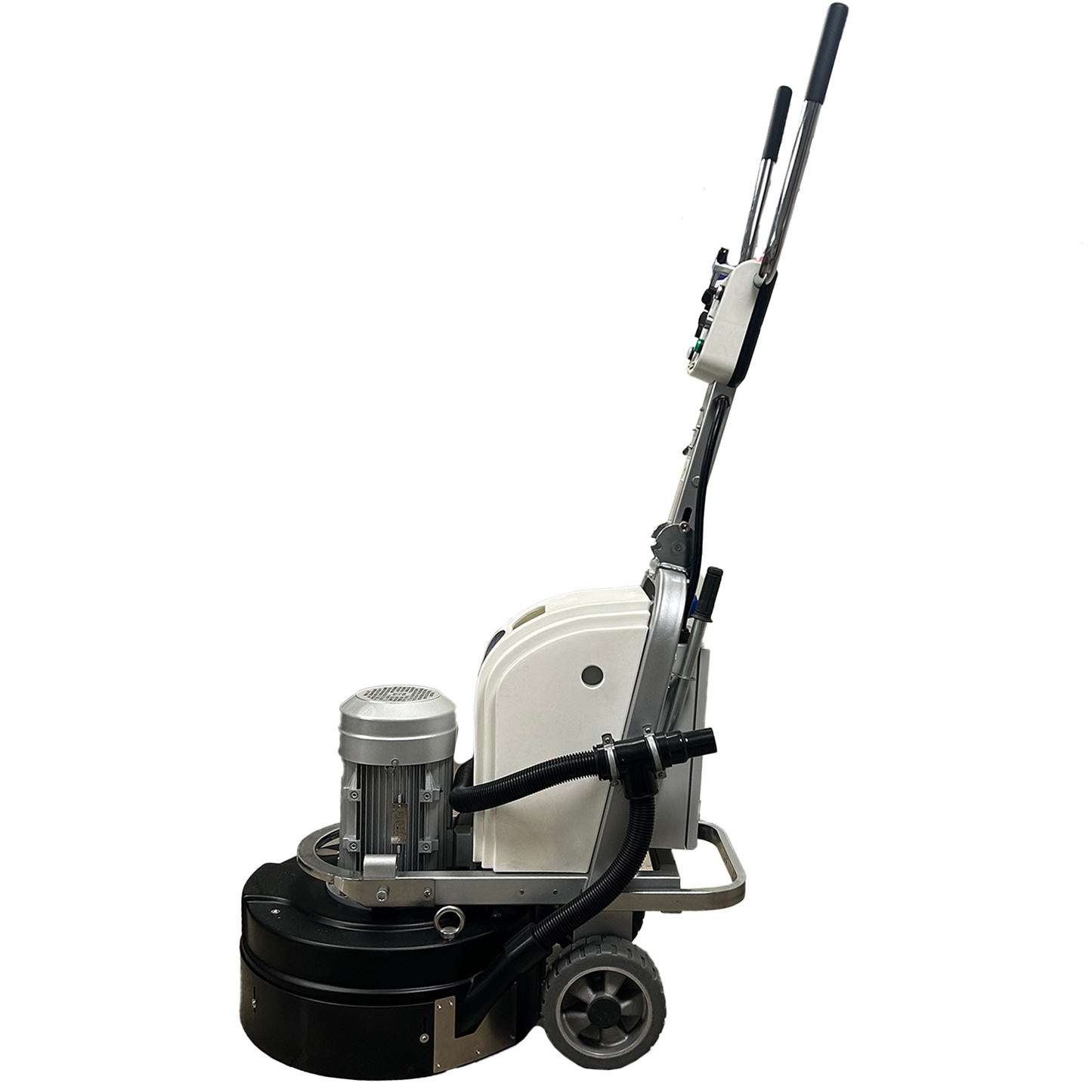

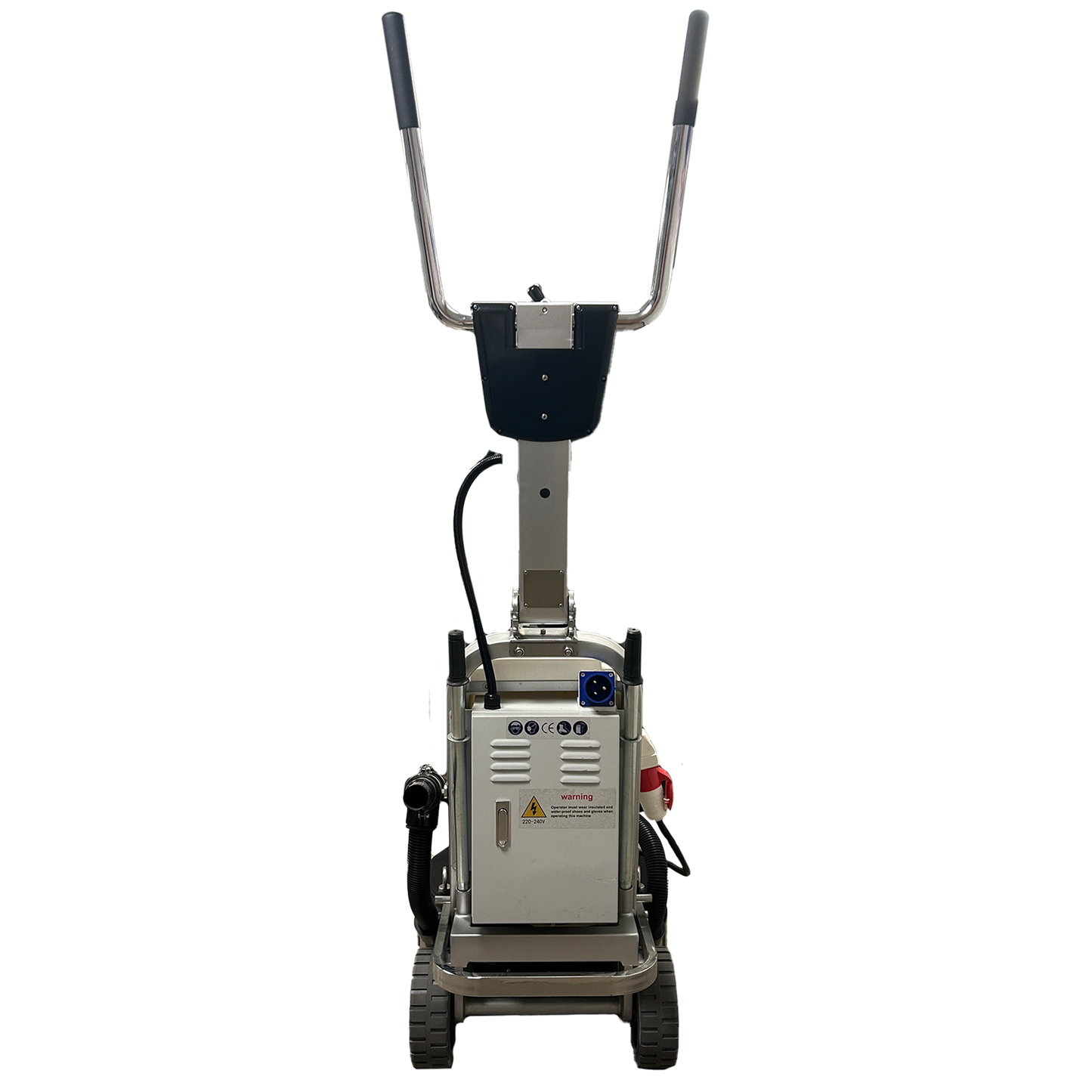

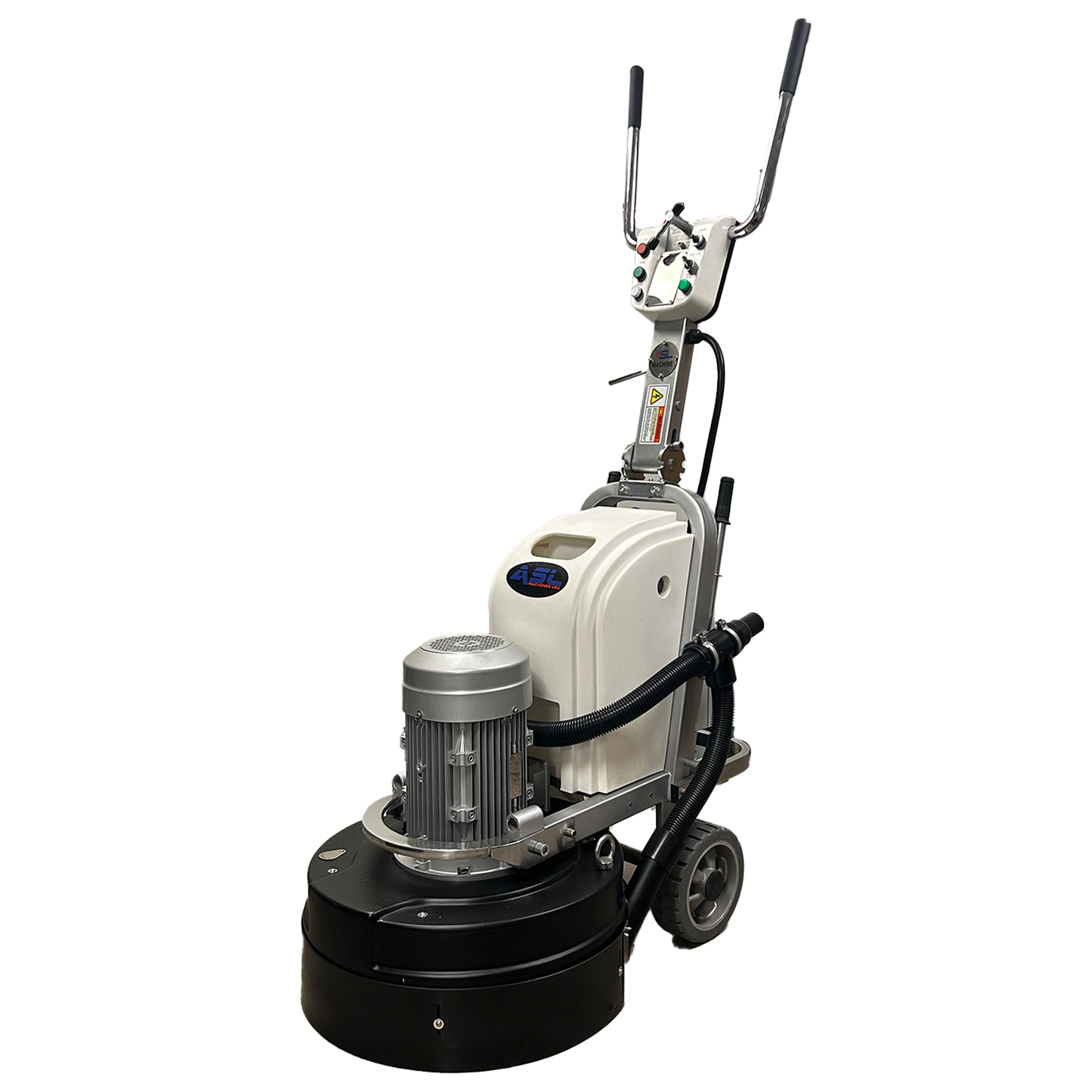

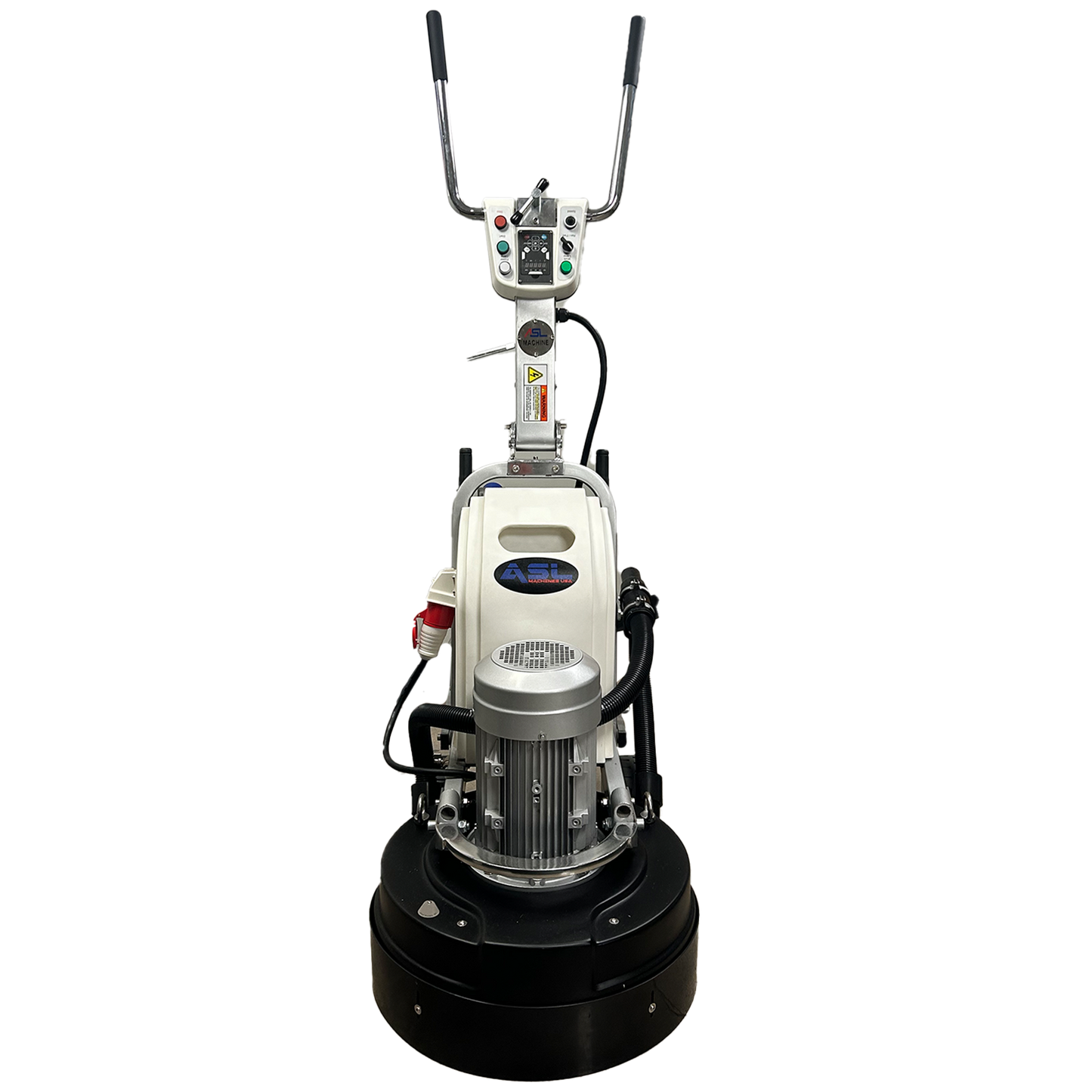

T8- 25" Electric Grinder

The ASL T8 is an impressive 25-inch floor grinding machine that has the option of having 3 or 4 heads, depending on your needs. It has an aluminum alloy gearbox is planetary gear driven making it capable of reaching a remarkably flat grind to produce smooth, polished surfaces. Because this machine is gear driven, there is no need to change belts.

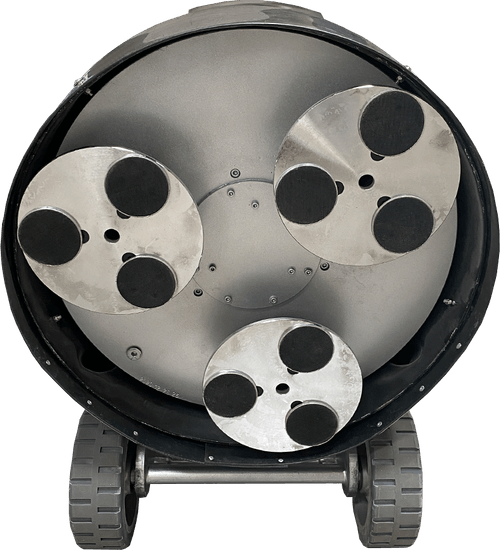

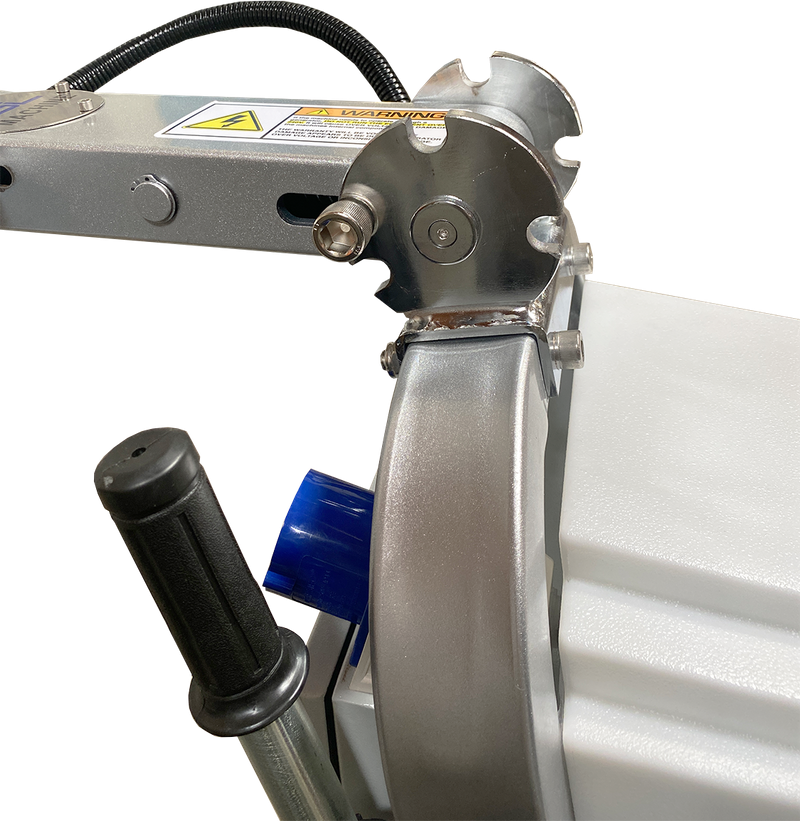

The magnetic plates make tool changing quick and efficient. The machine has a folding handle and split body design for a more convenient way to carry and transport the machine.

The automatic leveling system has excellent flexibility to evenly grind the floor and perfectly balance the machine. With the integrated vacuum port, the machine can grind and polish wet or dry.

• Model: T8 (3 HEAD)
• Voltage: 208- 240V  l  1 OR 3 PH
• Current:40A
• Inverter: 15HP
• Disc Speed: 300-1600 RPM
• Frequency: 50/60 Hz
• Motor: 10 HP
• Grinding Width: 25 Inch(650 MM)
• Disc Diameter: 10 Inch X 3 (250 MM X 3)
• Weight: 620LBS (281 KG)

T8 User Manual:

https://cdn.shopify.com/s/files/1/0735/5767/2211/files/ASL-MANUAL-T6.T7.T8.T9-a.pdf?v=1679951452
